Quartz pendulum module is the key component of quartz flexible accelerometer to measure acceleration by sensing inertial force. It is made of an integral quartz pendulum piece, with a force generator coil glued on both sides of the center of the swing piece and a flexible head as the swing axis, forming a moving part of the force generator. Its lead is led out by the gold plated lead of the quartz pendulum piece through the quartz flexible head. The coil of force generator is composed of aluminum alloy skeleton and enamelled wire wound in the skeleton.
Todos los productos
-
Vidrio de cuarzo óptico
-
Mecanizado de vidrio de cuarzo
-
Tubo de cristal de cuarzo
-
Tubo capilar de cuarzo
-
Tubo de vidrio de borosilicato
-
Varilla de cristal de cuarzo
-
Piezas de repuesto para láser
-
Objetivo de pulverización catódica de dióxido de silicio
-
Aparato de cuarzo
-
Placa de cristal de cuarzo
-
Piezas de vidrio personalizadas
-
Piezas de cerámica personalizadas
-
Equipo de fabricación óptico
-
Cubierta de cristal móvil que hace la máquina
-
Instrumento de medida óptico
-
Cristal óptico

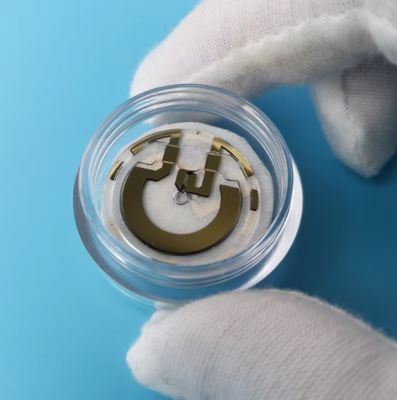

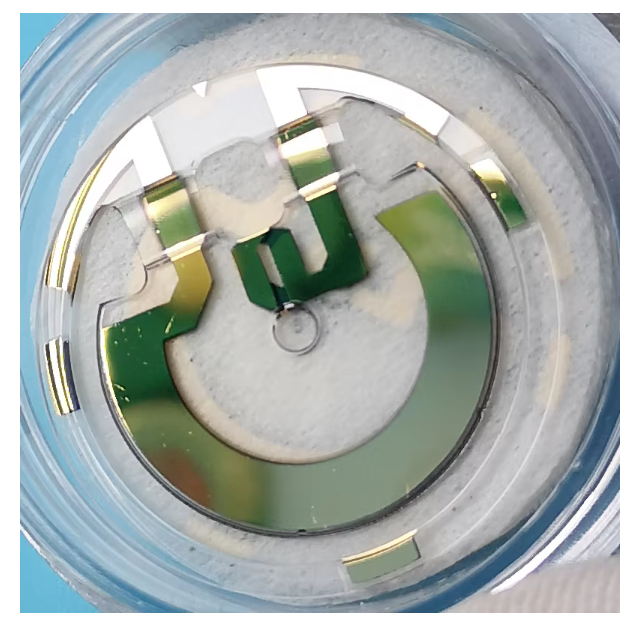

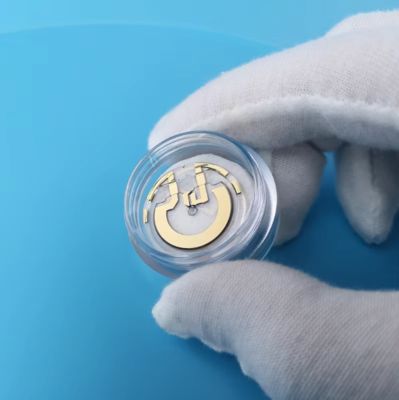

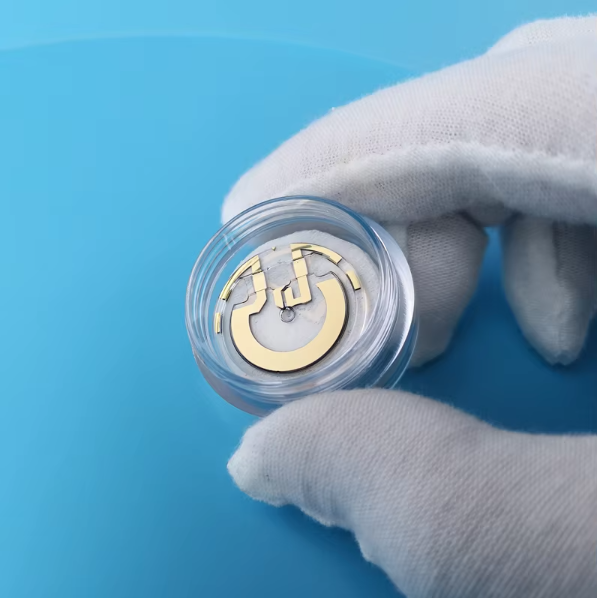

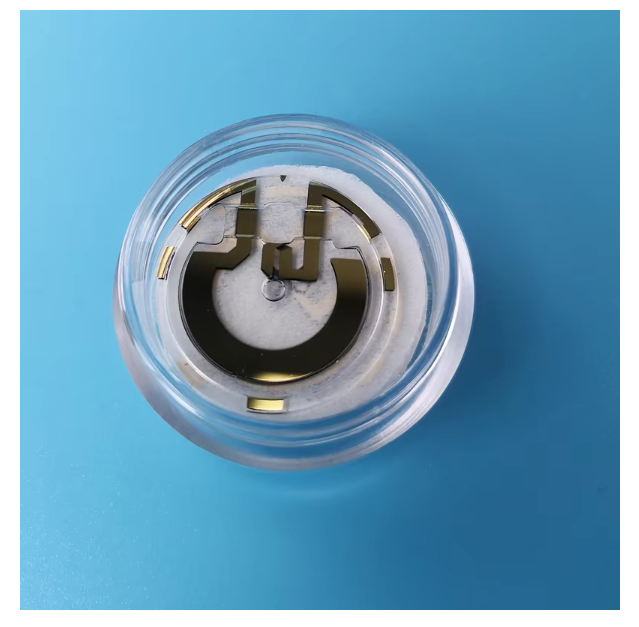

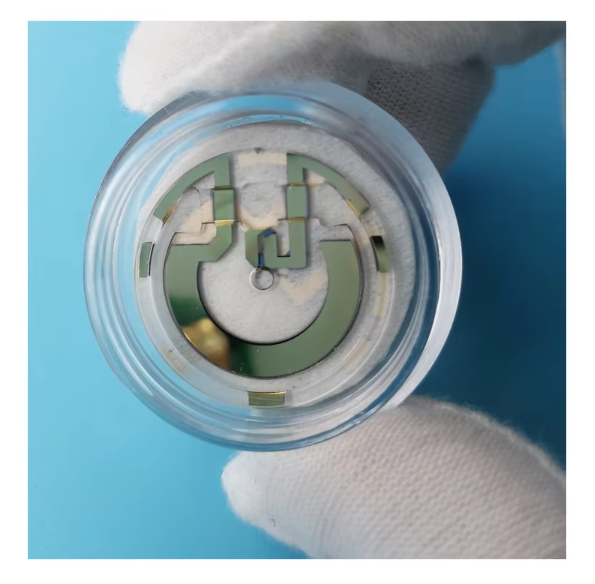

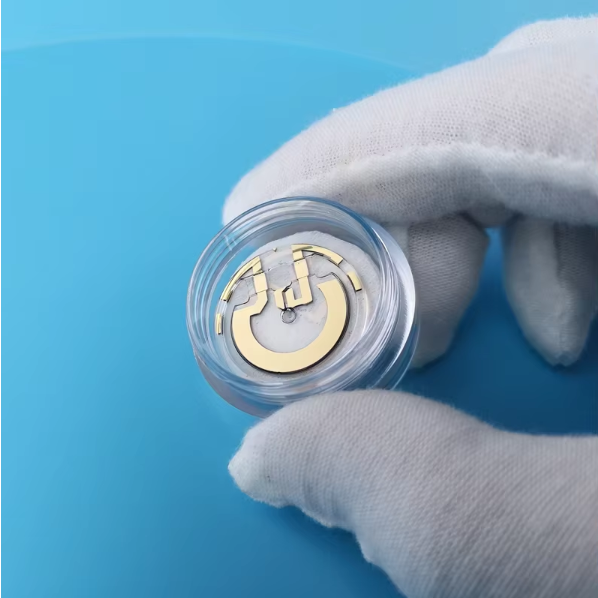

Premium Quality Flexible Beam Quartz Pendulum Gold Coated for High Reflection
| Lugar de origen | Shandong, China |
|---|---|
| Nombre de la marca | ZKTD |
| Certificación | ISO 9001:2008, Rohs |
| Número de modelo | ZKTD-PO12 |
| Cantidad de orden mínima | 5 PCS |
| Precio | USD 48/Pieces |
| Detalles de empaquetado | Carton, caja de madera, algodón perla. |
| Tiempo de entrega | 14 días laborables |
| Condiciones de pago | L/C, T/T |
| Capacidad de la fuente | 10000 piezas/mes |
Éntreme en contacto con gratis las muestras y los vales.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.
xDatos del producto
| Resaltar | flexible beam quartz pendulum,gold coated quartz pendulum,high reflection quartz glass |
||
|---|---|---|---|
Puede marcar los productos que necesita y comunicarse con nosotros en el tablero de mensajes.
Descripción de producto
Product Description
Specification
| Item | Value |
| Brand Name | ZKTD |
| Application | Sensor, Inertial Navigation, instrument |
| Shape | Round |
| Chemical Composition | 99.999% fused silica |
| Product Name | Flexible Beam Quartz Pendulum |
| Color | Clear Transparent |
| Parallelism | <2um |
| Flatness | <0.6um |
| Surface Roughness Ra | <1nm |
| Thickness Error Of Flexible Beam | <1um |
Flexible Beam Quartz Pendulum For Inertial Navigation
Company Profile
Yantai ZK Optics Co., Ltd., is a high-tech comprehensive glass processing enterprise integrating R&D, production and sales. The
product sales have been spread all over the world, and are trusted by users in Asia, Europe, the United states, South Korea and
India. It has established a high-quality product image and brand in the field of glass deep processing.
product sales have been spread all over the world, and are trusted by users in Asia, Europe, the United states, South Korea and
India. It has established a high-quality product image and brand in the field of glass deep processing.
Certificate
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
